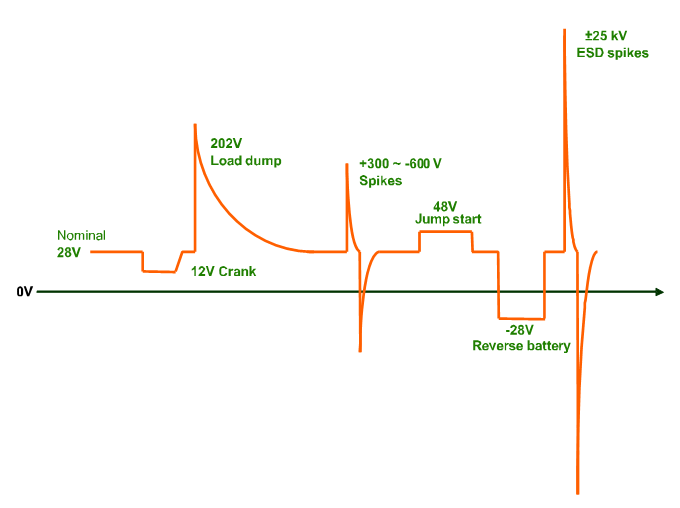

| 等级 | 12V系统 | 24V系统 | |||||||
| Vs | Ri | Td | Vs | Ri | Td | ||||
| 5a | 65 ~ 87V | 0.5 ~ 4ohm | 40 ~ 400ms | 123 ~ 174V | 1 ~ 8ohm | 100 ~ 350ms | |||
| 4 | -6 ~ -7V | 0~0.02ohm | 15~40ms | -12~-16V | 0~0.02ohm | 50~100ms | |||
| 3b | 75 ~ 100V | 50ohm | 0.1~0.2μs | 100 ~ 200V | 50ohm | 0.1~0.2μs | |||
| 3a | -112 ~ 150V | 50ohm | 0.1~0.2μs | -150~-200V | 50ohm | 0.1~0.2μs | |||
| 2b | 10V | 0~0.05ohm | 0.2s~2s | 20V | 0~0.05ohm | 0.2s~2s | |||
| 2a | 37 ~ 50V | 2ohm | 0.05ms | 37 ~ 50V | 2ohm | 0.05ms | |||
| 1 | -75 ~ -100V | 10ohm | 2ms | -450 ~ -600V | 50ohm | 1ms | |||
